Technical Specifications

FarmTrak™ boots are made for heavy-duty, everyday use, and are tested to the highest standards to ensure top-level performance.

Construction & Materials

FarmTrak™ boots are CE Mark certifed products, made in an accredited facility with every stage of the design and manufacturing process inspected and tested.

Materials

Synthetic Upper: Polyurethane (PU)
Dual Density Outsole: Polyurethane (PU) and Thermoplastic Polyurethane (TPU)

Boot Construction

The all-in-one injection-moulded construction process provides a strong bond between the polyurethane upper and outsole. This ensures a water-tight seal and reduces the possibility of separation under stress.

Product Sizing

Users should choose the correct size to suit their feet. This will provide maximum comfort and reduce the risk of boot deformation. Ill fitting boots can contribute to trips and falls.

Antibacterial Treated Insoles

All boots are supplied with an original insole. All testing has been conducted with this device in place. Performance of the footwear will be altered without the presence of this device, or with an alternative insole.

CE Mark

Quality Standards

FarmTrak F-Tread safety and non-safety boots are manufactured and tested to comply with the latest EN ISO quality standards. These latest quality standard versions, include all of the parameters of the previous iterations of the standards, with additional stricter requirements to improve performance and protect the user.

EN ISO 20347:2012

Personal protective equipment - Occupational footwear

Basic requirements - Occupational footwear is not required to have a protective toecap.

Applies to:-

  • FarmTrak F-Tread LB1 (Non-Safety)
  • FarmTrak F-Tread SB1 (Full-Safety)
Property Description
P Penetration resistance
C Conductive
A Antistatic protection
I Electrically insulating
HI Insulation against heat
CI Insulation against cold: tested for 30 minutes at 1 -20°C
E Energy absorbing in heel seat region
WRU Uppers resistant to water penetration / absorption
HRO Heat resistant outsole: To resist 300°C for 60 seconds

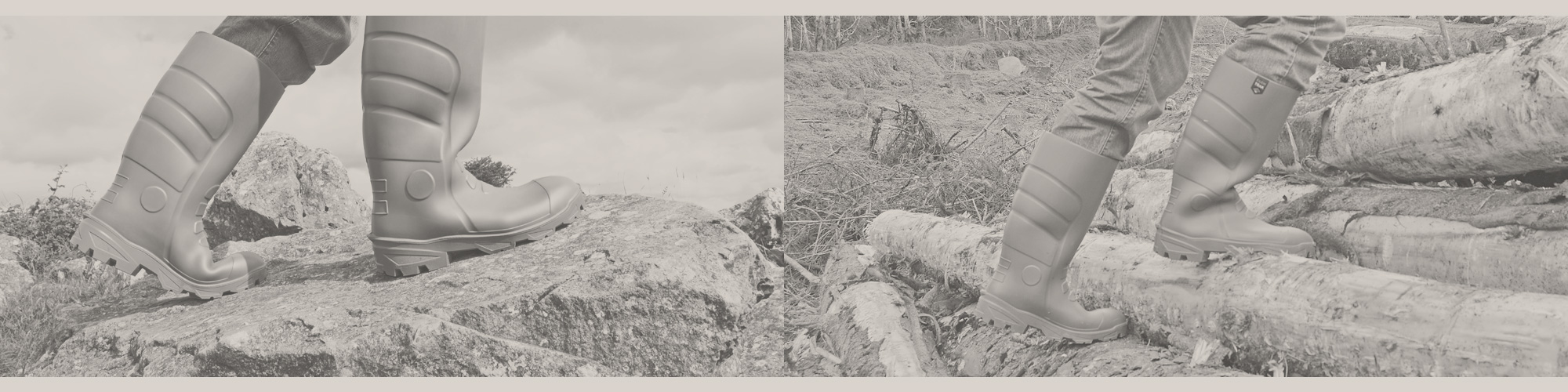

F-Tread boots gripping on surfaces

TS EN ISO 13287:2012

Dynamic Coefficient of friction [Slip Resistance]

The non-slip outsole of our F-Tread boots has been tested for slip resistance and has been approved with a rating of SRC (highest).

Applies to:-

  • FarmTrak F-Tread LB1 (Non-Safety)
  • FarmTrak F-Tread SB1 (Full-Safety)

The codes indicate that the footwear has met the specified requirements when tested as follows:

Category Description
SRA Tested on ceramic tile wetted with dilute soap solution
SRB Tested on smooth steel wetted with glycerol
SRC Tested under both the above conditions (SRA + SRB)

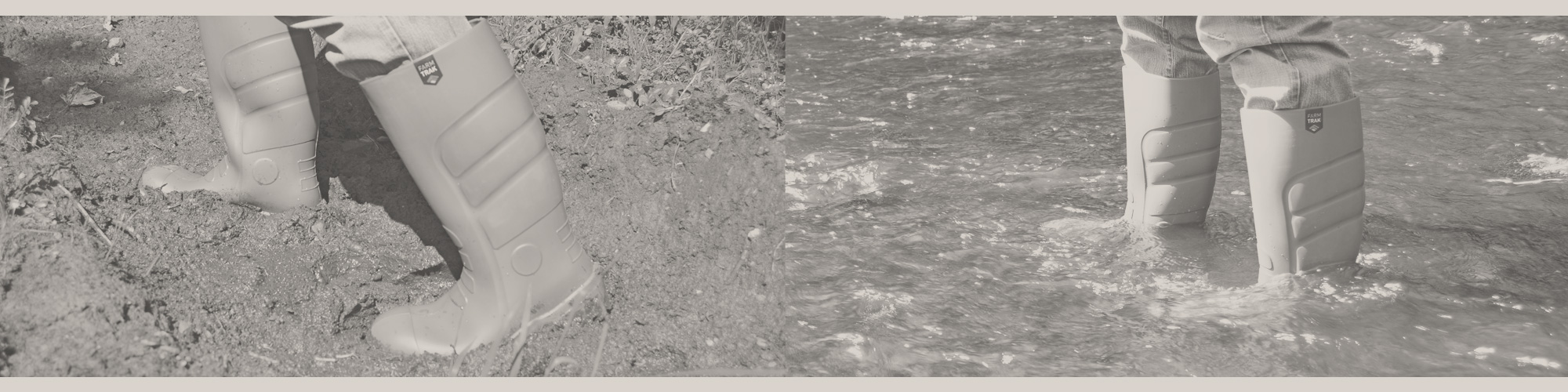

F-Tread boots waterproof seal

EN ISO 20345:2011

Personal safety equipment – Safety footwear

Basic requirements - Safety footwear must have a 200J toecap.

Applies to:-

  • FarmTrak F-Tread SB1 (Full-Safety)
Property Description
P Penetration resistance
C Conductive
A Antistatic protection
I Electrically insulating
HI Insulation against heat
CI Insulation against cold: tested for 30 minutes at 1 -20°C
EN Energy absorbing heel seat region
WR Whole footwear resistant to water penetration / absorption
M Metatarsal protection
AN Ankle protection
WRU Water resistant upper only
CR Cut resistant upper
HRO Heat resistant outsole: To resist 300°C for 60 seconds
FO Fuel oil resistant sole
Classification I

F-Tread SB1 performs up to the highest level of S5.
This rating also includes the lower levels SB, S1 and S4.

Category Description
SB Basic requirements - For safety footwear with a toe cap resistant to an impact of 200 Joules
S1 Basic requirements + Closed heel area, Energy absorption at seat area, Antistatic properties, Resistance to fuel oil
S4 S1 + Entirely moulded polymer / rubber upper (e.g Wellington Boots) making them waterproof and leak proof
S5 S4 + Midsole penetration resistance.
